Renewable Energy Solutions

System configurations and optimization strategies for Canadian clean power infrastructure

Renewexa Power analyzes and evaluates renewable energy systems across diverse configurations. Our assessment expertise covers traditional single-technology installations, advanced hybrid systems, and emerging integrated solutions tailored to Canadian environmental conditions.

Solar Energy Configurations

Photovoltaic system layouts optimized for Canadian solar resources

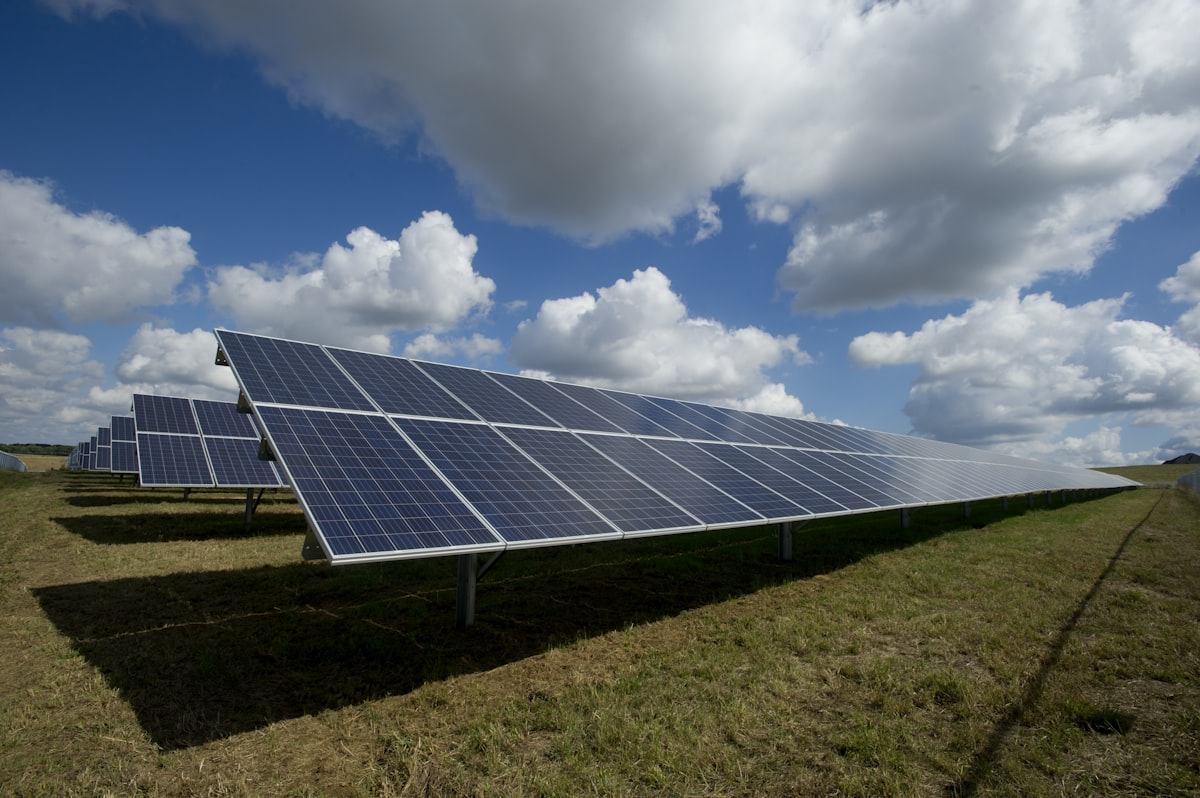

Ground-mounted solar array

Ground-Mounted Arrays

Configuration: Fixed-tilt or single-axis tracking systems on open land

Capacity Range: 100 kW - 50+ MW

Key Features:

  • Optimal tilt angle for latitude-specific irradiance
  • Row spacing calculated for minimal shading
  • Snow shedding considerations for Canadian winter
  • Foundation design for freeze-thaw cycles
  • Vegetation management below panels

Assessment Focus: Panel degradation patterns, soiling accumulation, string-level performance variations, seasonal output trends

Agricultural solar installation

Agrivoltaic Systems

Configuration: Elevated solar arrays over agricultural land

Capacity Range: 500 kW - 20 MW

Key Features:

  • Raised mounting height (3-5 meters) for farm equipment
  • Wider spacing for dual land use
  • Crop-specific shading analysis
  • Microclimate effect on plant growth
  • Livestock compatibility considerations

Assessment Focus: Panel efficiency under partial shading, structural integrity under snow load, environmental benefit quantification, land productivity analysis

Large-scale solar farm

Utility-Scale Solar Farms

Configuration: Large photovoltaic installations with centralized inverters

Capacity Range: 10 MW - 500+ MW

Key Features:

  • Multiple inverter stations for redundancy
  • Medium voltage collection system
  • Weather monitoring stations
  • Advanced monitoring and SCADA integration
  • Substation and grid interconnection

Assessment Focus: System-wide performance ratio, inverter efficiency trends, string-level fault detection, grid compliance monitoring, large-scale weather correlation

Wind Energy Configurations

Turbine installations optimized for Canadian wind resources

Single large wind turbine

Single Turbine Installations

Configuration: Individual utility-scale turbines (2-5 MW)

Capacity Range: 2 MW - 5 MW per unit

Key Features:

  • Hub heights 80-120 meters for optimal wind access
  • Rotor diameters 90-150 meters
  • Advanced pitch control and yaw systems
  • Cold climate packages for Canadian conditions
  • Lightning protection and ice detection

Assessment Focus: Power curve validation, blade condition and erosion, gearbox health monitoring, generator temperature patterns, vibration analysis

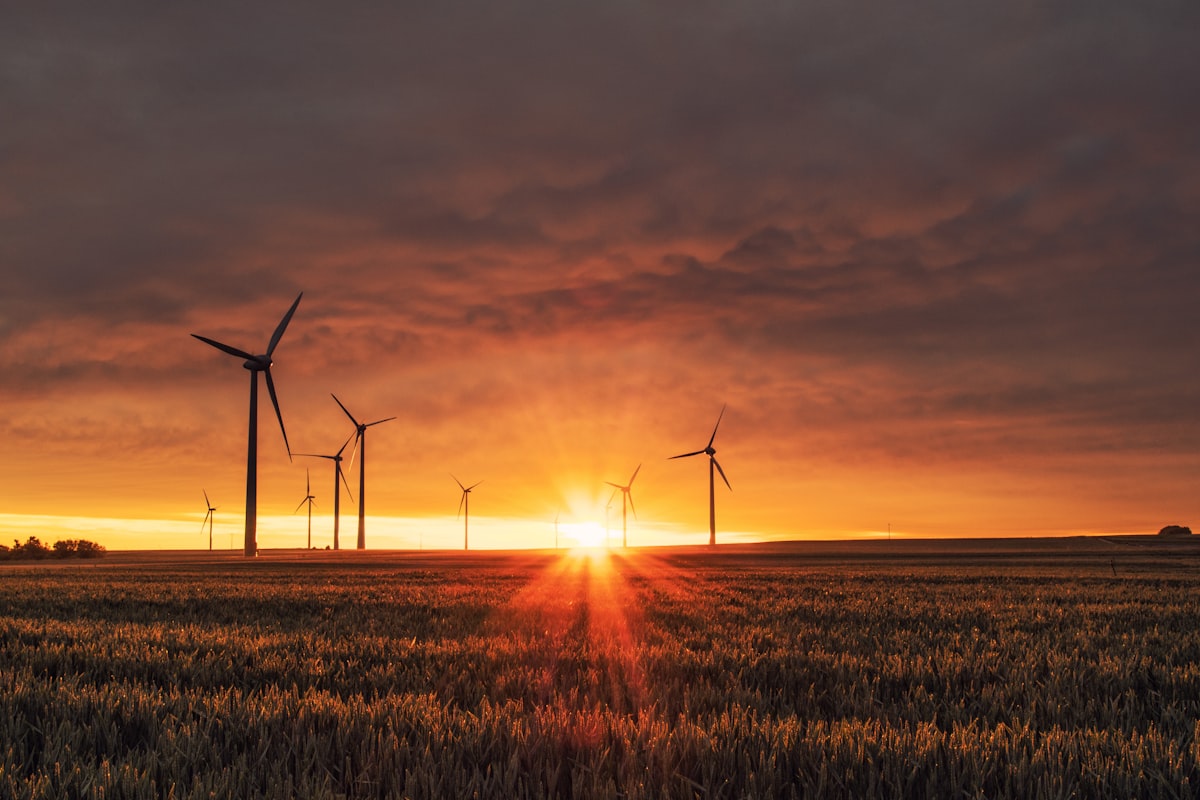

Wind farm with multiple turbines

Multi-Turbine Wind Farms

Configuration: Arrays of 10-100+ turbines with optimized spacing

Capacity Range: 20 MW - 500+ MW total

Key Features:

  • Micro-siting for wind resource optimization
  • Wake effect minimization between turbines
  • Centralized control and monitoring
  • Collector system and substation
  • Access roads and maintenance infrastructure

Assessment Focus: Farm-wide efficiency analysis, wake loss quantification, individual turbine comparison, maintenance schedule optimization, curtailment pattern evaluation

Offshore wind installation

Offshore Wind Systems

Configuration: Turbines on fixed or floating foundations in marine environments

Capacity Range: 8 MW - 15 MW per turbine

Key Features:

  • Marine-grade corrosion protection
  • Foundation design for wave and current loads
  • Subsea cable interconnection
  • Enhanced wind resource (higher, more consistent)
  • Remote monitoring and maintenance planning

Assessment Focus: Corrosion monitoring, foundation integrity, marine growth impact, power transmission efficiency, maintenance accessibility analysis

Hybrid System Configurations

Integrated solar-wind solutions with energy storage

Solar-wind hybrid system diagram

Solar-Wind Complementary Systems

Configuration: Co-located solar arrays and wind turbines sharing infrastructure

Components:

  • Solar PV array (ground-mounted)
  • Wind turbines (1-10 units)
  • Common inverter station
  • Shared grid connection
  • Unified monitoring system

Advantages:

  • Complementary generation patterns (solar peak daytime, wind often stronger at night)
  • Higher capacity factor through resource diversification
  • Shared infrastructure reduces total development cost
  • More stable power output profile

Assessment Focus: Combined capacity factor analysis, generation complementarity evaluation, shared equipment efficiency, integration losses, optimization opportunities

Hybrid system with storage

Hybrid Systems with Energy Storage

Configuration: Renewable generation coupled with battery storage

Components:

  • Solar and/or wind generation
  • Battery energy storage system (BESS)
  • Bidirectional inverters
  • Advanced energy management system
  • Grid connection or microgrid capability

Advantages:

  • Energy time-shifting for demand matching
  • Frequency regulation and grid services
  • Renewable energy firming and smoothing
  • Backup power during grid outages
  • Peak demand reduction capabilities

Assessment Focus: Storage system health and degradation, charge/discharge efficiency, cycling patterns, energy arbitrage performance, grid service capability validation

Microgrid configuration

Renewable Microgrids

Configuration: Integrated system capable of islanded operation

Components:

  • Multiple renewable generation sources
  • Energy storage (battery + optional backup generator)
  • Microgrid controller and protection systems
  • Load management capabilities
  • Grid connection with islanding capability

Applications:

  • Remote communities with limited grid access
  • Industrial facilities requiring high reliability
  • Critical infrastructure (hospitals, data centers)
  • Island and coastal installations

Assessment Focus: System reliability metrics, islanding transition performance, load balancing effectiveness, energy self-sufficiency rates, component coordination analysis

System Optimization Examples

Scenario: Solar Farm Underperformance

Issue: 5 MW solar farm operating at 12% below expected output

Assessment Findings:

  • String-level voltage mismatch indicating damaged bypass diodes
  • Shading from vegetation growth not accounted for
  • Inverter clipping during peak hours due to DC oversizing

Recommendations: Module repair/replacement, vegetation management protocol, inverter capacity upgrade evaluation

Scenario: Wind Turbine Efficiency Decline

Issue: Turbine power output declining over 18 months

Assessment Findings:

  • Leading edge erosion on all three blades
  • Power curve deviation increasing with wind speed
  • Annual energy loss estimated at 5-8%

Recommendations: Blade leading edge protection application, power curve recalibration, predictive maintenance scheduling

Scenario: Hybrid System Integration

Issue: Combined solar-wind system not achieving expected synergy

Assessment Findings:

  • Control logic prioritizing one source over optimal dispatch
  • Battery cycling patterns reducing storage lifespan
  • Grid synchronization delays causing curtailment

Recommendations: Control strategy optimization, battery management refinement, grid connection protocol updates
